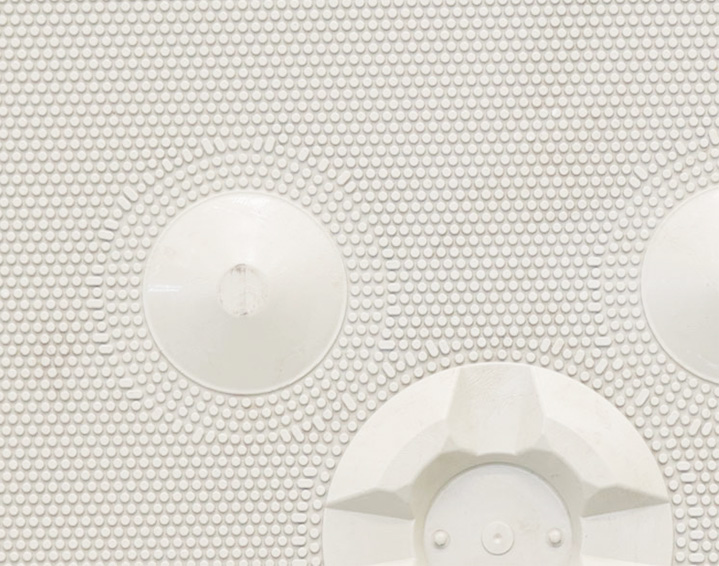

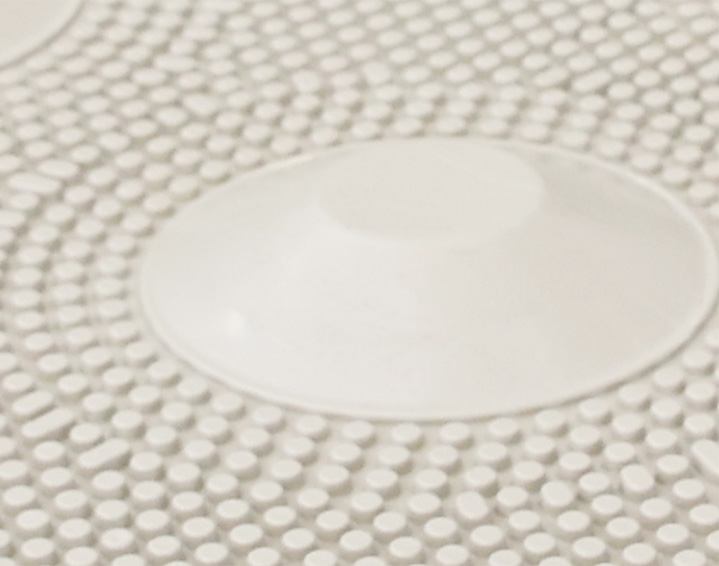

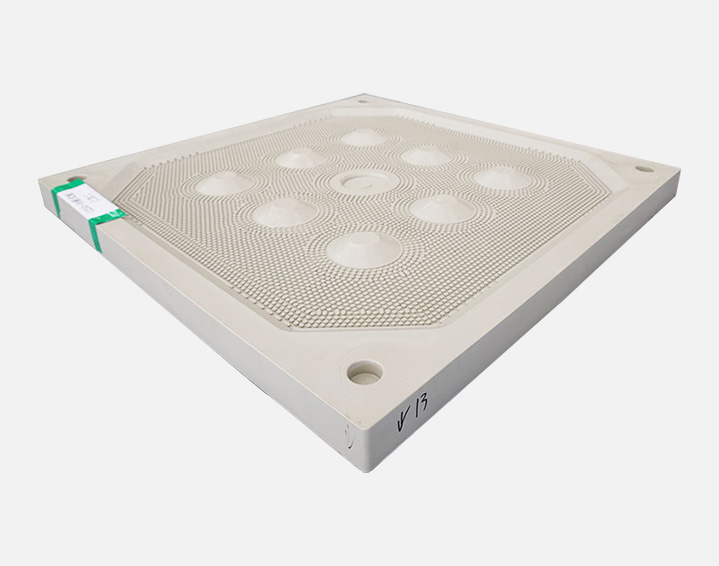

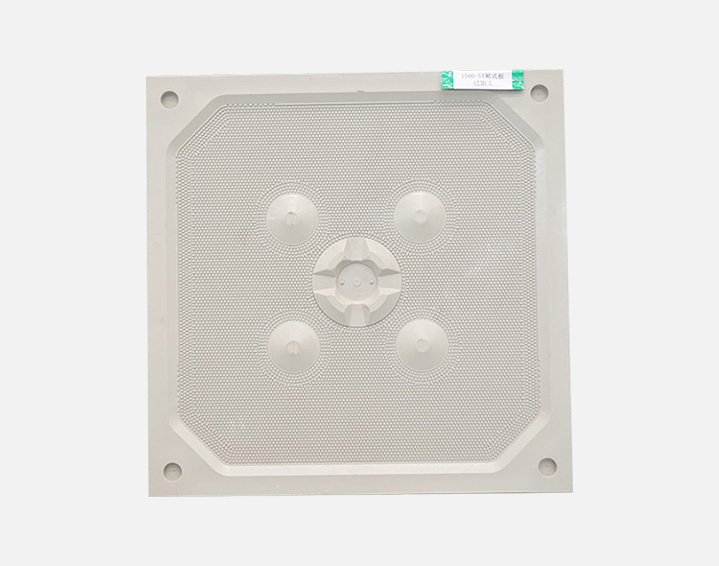

The recessed chamber filter plate made from polypropylene is a development of the plate and frame filter plate and has the same functionality.
The chamber plate frame is however integrated within the chamber filter plate thus significantly enhancing the plate's stability. This enables chamber filter plates to be used at much higher filtration pressure levels. Optional cake and plate thicknesses are available depending on the specific filtration conditions and application.
| Format | Standard sizes: 250mm—2500mm, Larger and alternative formats available upon request. |
| Feed eye position | Standard feeds: Centralised feed, decentralised feed, corner feed, external feed, position eye In general, any feed eye design is possible and can be made according to customer requirements. |
| Pressure | Standard products are suitable for a maximum filtration pressure of 8 or 12 bar depending on the product. Special products for pressure levels of 30 bar and higher are available. |
| Temperatures | -15℃—105℃ |
| Materials | chamber filter plates are available in the following materials according to intended use: Polypropylene homopolymers / copolymers Polypropylene homopolymers FDA / copolymers FDA Antistatic polypropylene PVDF Antistatic PVDF Other materials available on request |
| Typical applications | 1) Chemical industry; 2) Metal refining; 3) Mining industry, ore concentrates and tailings; 4) Minerals processing; 5) New energy battery materials; 6) Sugar; 7) Pharmaceutical, and other industries requiring special temperatures. |
The 30-year filtration experience of our technical team will help our clients to obtain a reliable filtration solution.
